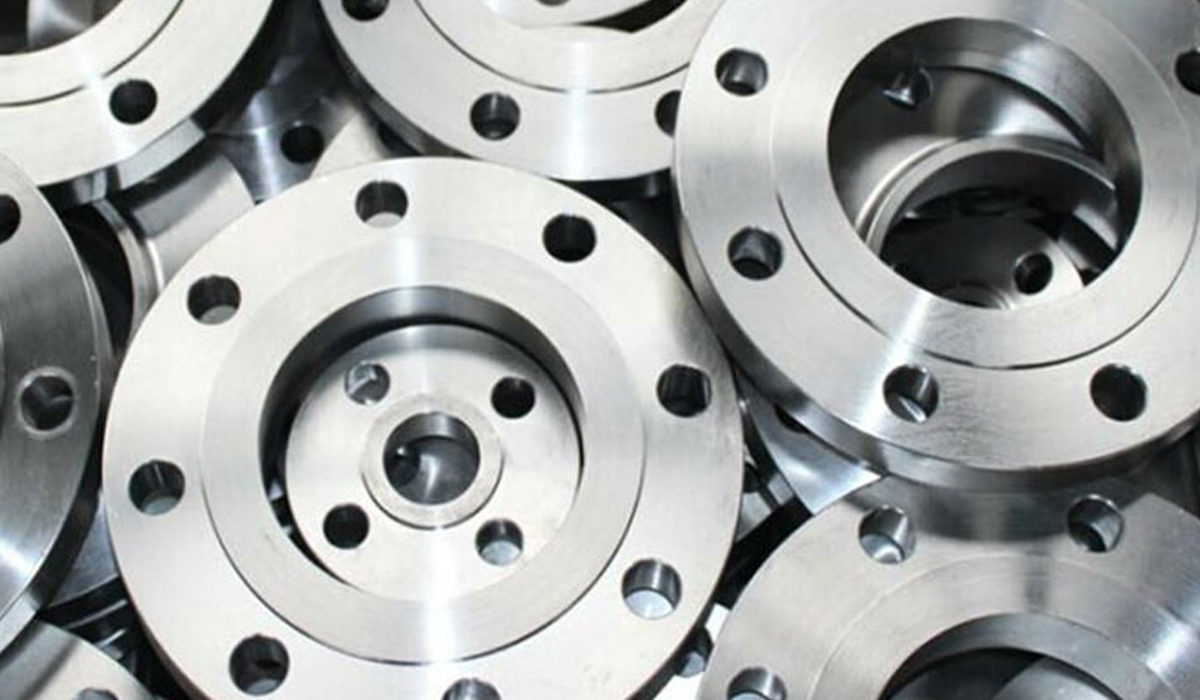

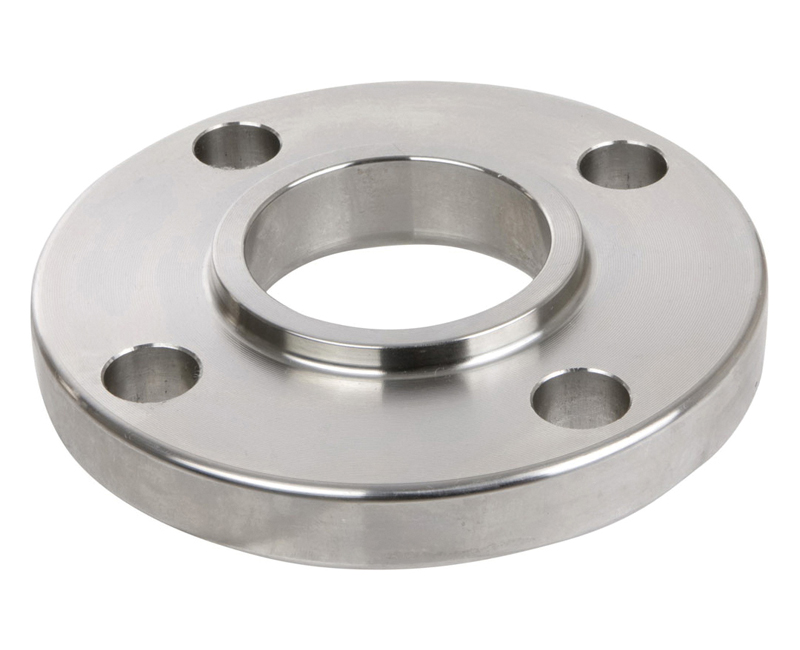

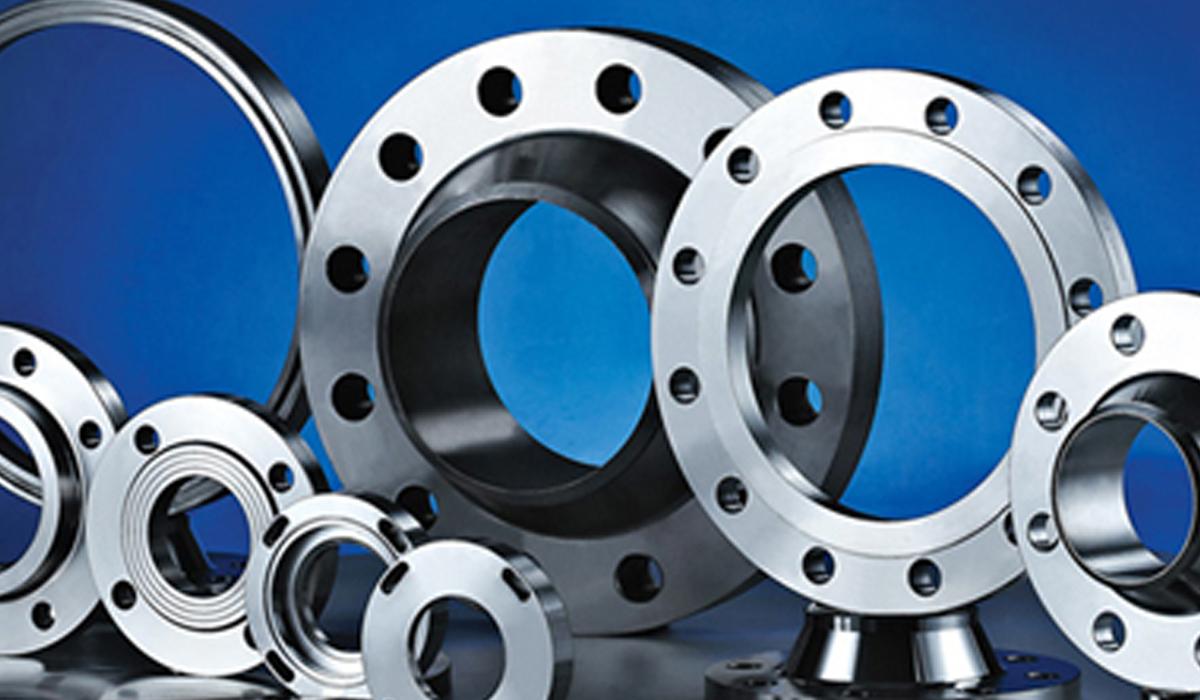

Vessco Overseas is one of the biggest exporter, manufacturer and supplier of Hastelloy C276 Flanges in India. These are utilized for a considerable amount of utilizations, for example, in desulfurization of pipe gas mechanical assembly and chemical process apparatus. It as well has excellent machinability, even though the alloy work toughens as is factual of the nickel base alloys on the whole. A noteworthy advantage of these UNS N10276 Flanges is that it overall does not require arrangement warm direct in the wake of welding.Hastelloy C276 Slip On Flanges can be cold worked by all conventional methods.

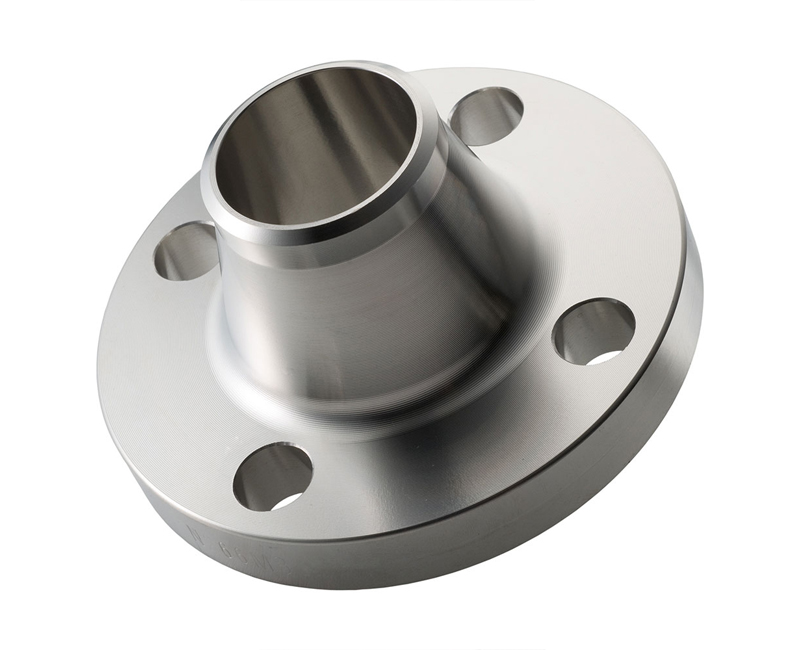

These Hastelloy C276 Spectacle Blind Flanges withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide. Hastelloy C276 Weld Neck Flanges should be considered for use in environments where resistance to hot contaminated mineral acids, organic and inorganic chloride – contaminated media, chlorine, formic and acetic acids, acetic, acetic anhydride, sea water and brine solutions is desired.Composite C276 Flanges is a shaped resistant product. These WNR 2.4819 Flanges repulses the production of grain limit triggers that would exacerbate consumption opposition. These are available to our profitable clients in various scope of widths, divider thicknesses and sizes at very affordable rates.
Specifications |
||
| Specifications | : | ASTM B564 / ASME SB 564 |
| Dimensions | : | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Class / Pressure |
: | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Grade | : | Hastelloy C276– UNS No. N10276 |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C276 | 2.4819 | N10276 | ХН65МВУ | - | NW 0276 | ЭП760 | NiMo16Cr15W |
| Grade | Ni | Mo | Cr | Fe | W | Co | Mn | C | v | P | S | Si |
| Hastelloy C276 | Bal | 15 – 17 | 14.5 – 16.5 | 4 – 7 | 3 – 4.5 | 2.5 max | 1.0 max | 0.01 max | 0.35 max | 0.04 max | 0.03 max | 0.08 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm33 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40% |
