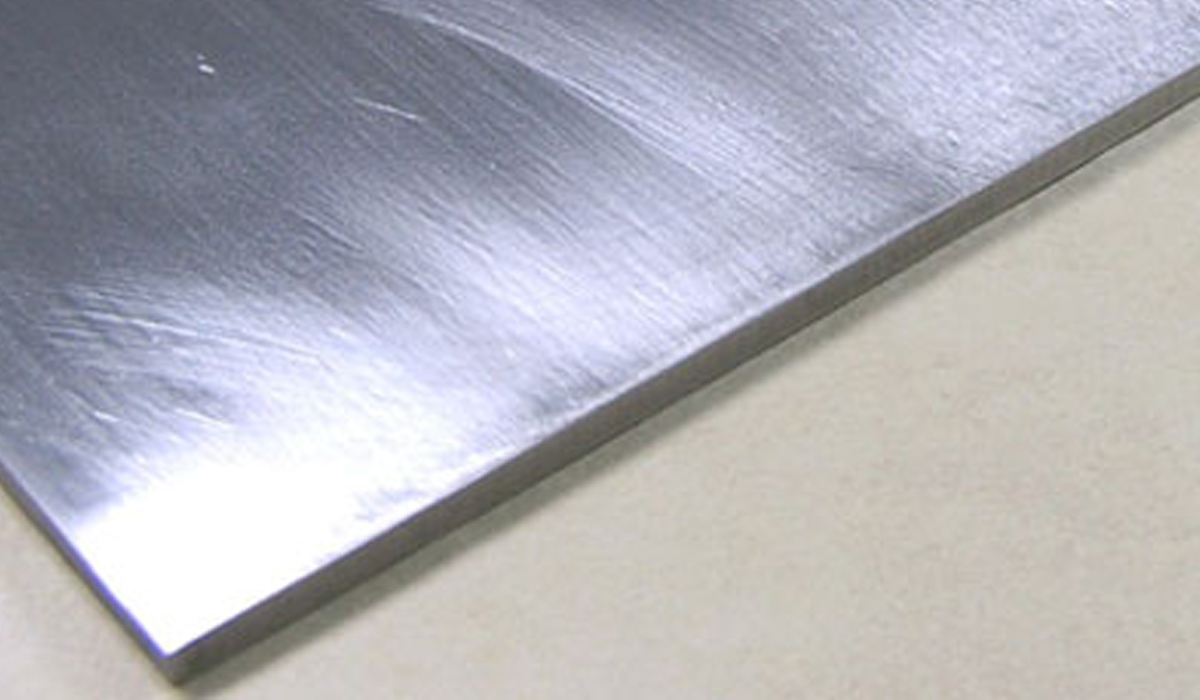

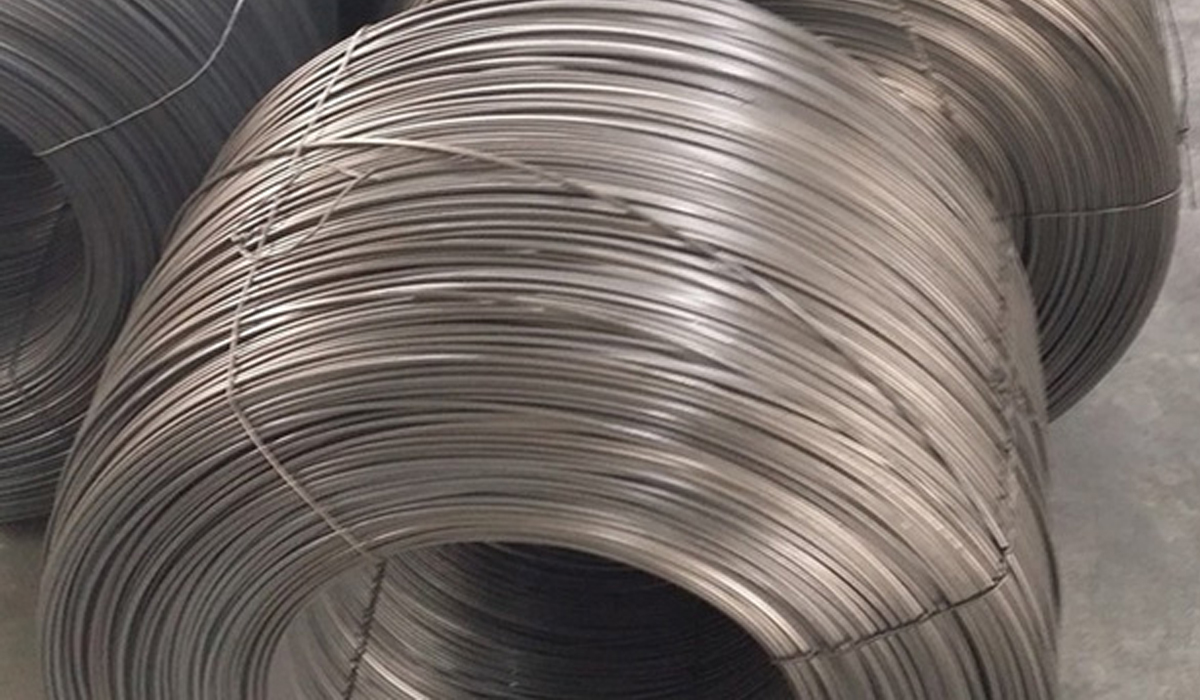

Vessco Overseas is a leading Manufacturer, Suppliers of Titanium Gr2 Sheets, Plates, Wire in Mumbai, India. Titanium Grade 2 Sheets & Plates is a heat treatable and has soaring ductility and strength alongside with first-rate fabricability and weldability. It's a combination of strength and corrosion resistance, showing the maximum strength of all of the unalloyed grades. They are used in a range of chemical procedure paraphernalia in addition to in aeronautical and marine applications. Our Titanium Gr2 Sheets, Plates and Coils are built using high quality raw materials and advanced machinery, which makes it more durable and reliable.

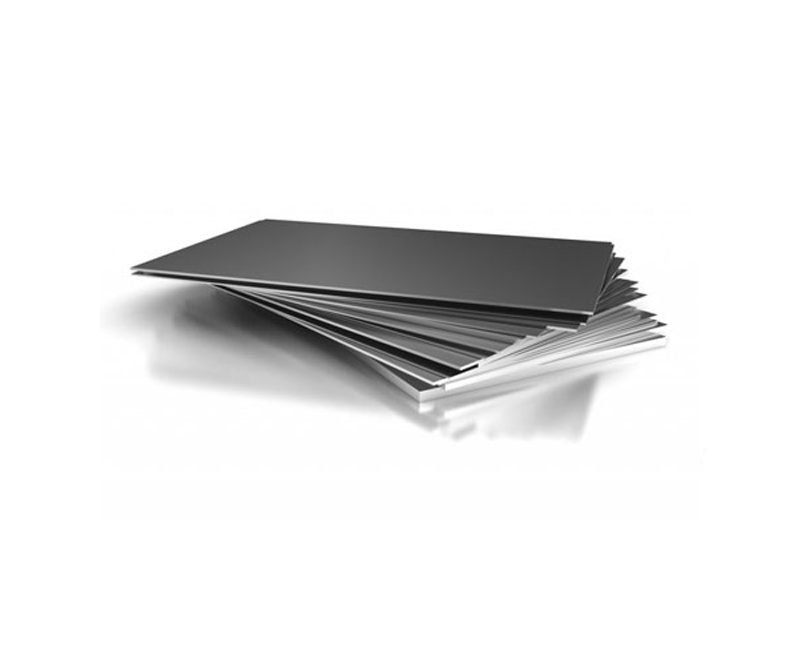

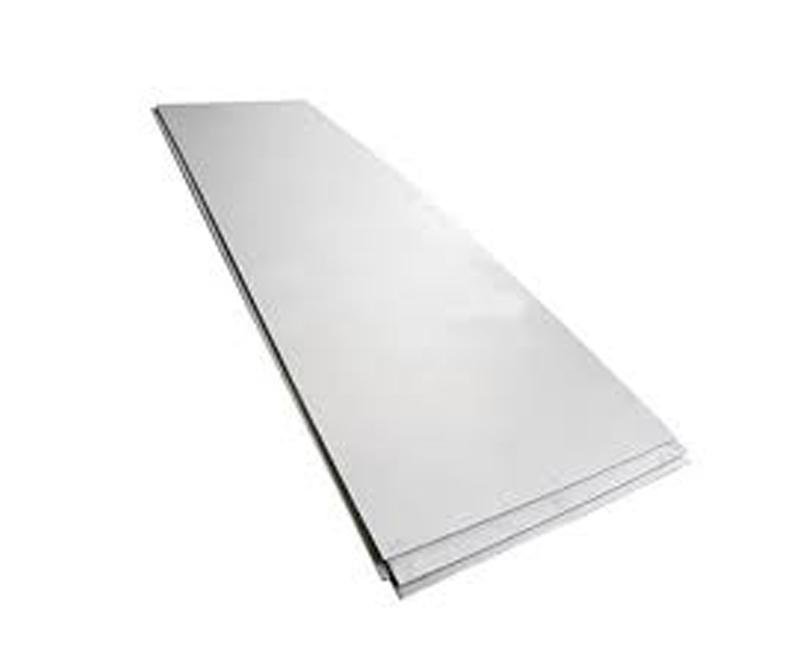

Our range of Titanium Grade 2 Sheets Plates is made by using premium quality of titanium. Titanium Grade 2 Plates is an unalloyed, standard strength titanium product. This titanium grade is used in aircraft engines, marine and airframes parts, where it's distinguishing characteristics are corrosion resistance and good weldability. These Sheets & Plates are available different dimentions, specification & thickness as per the requirements of clients. Titanium Gr.2 Sheets, Plates provides resistance to corrosion and bears low weight proportion helping it gain usability in various industries for different applications effectively.
Specifications |
||
| Specifications | : | ASTM B863 ASME SB863 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Diameter |
: | 10 mm To 100 mm |
| Length | : | 100 mm TO 6000 mm |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Size | : | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
